Basic Definition of LCP Material
Liquid Crystal Polymer (LCP) is a class of high-performance thermoplastic engineering plastics capable of forming a liquid crystal state in the molten phase. Its molecular chains feature a rigid rod-like structure that maintains an ordered alignment even in a molten state, imparting unique anisotropic physical characteristics to the material.

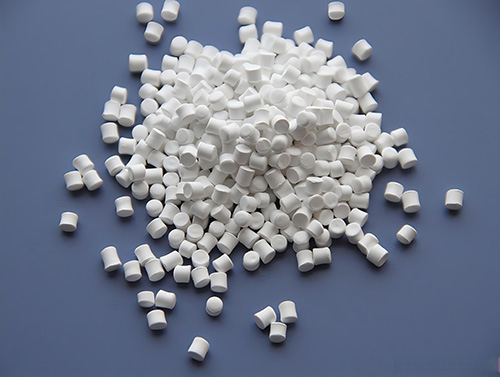

Industrialized in the 1960s, LCP has become a critical material in fields such as electrical & electronics, automotive electronics, aerospace, and healthcare. Pure LCP appears as white or light yellow pellets, with a density ranging approximately from 1.35 to 1.45 g/cm³.
Core Performance Characteristics
Main Advantages:
-
Exceptional Thermal Properties: The heat deflection temperature can reach above 280°C, with short-term heat resistance exceeding 400°C, enabling it to withstand high-temperature reflow soldering.
-
Excellent Mechanical Properties: High modulus and high strength, with performance significantly enhanced after glass fiber reinforcement.
-
Superb Dimensional Stability: The coefficient of thermal expansion is extremely low, allowing the processing of ultra-thin wall components down to 0.2 mm.
-
Outstanding Electrical Properties: Low dielectric constant and extremely low dielectric loss (loss <0.0048 in the 30–110 GHz frequency band).
-
Excellent Flame Retardancy: Achieves a UL94 V-0 rating without the need for additives, with an oxygen index >40%.
-
Good Chemical Resistance: Resistant to most acids, bases, and solvents.
-
Short Molding Cycle: The injection molding cycle takes only 10–30 seconds, making it ideal for mass production.
Main Limitations:
-
Higher price, significantly exceeding other engineering plastics such as PPS and PA.
-
Anisotropy, which causes property discrepancies between the flow direction and the transverse direction.
-
Relatably lower weld line strength.
Main Classifications of LCP
| Classification Method | Type | Description |
| Liquid Crystal Mechanism | Thermotropic LCP | Forms a liquid crystal state induced by temperature; most widely used in industrial applications. |
| Liquid Crystal Mechanism | Lyotropic LCP | Forms a liquid crystal state when dissolved in a solvent (e.g., aramid fibers). |
| Product Form | LCP Resin/Pellets | Used for injection molding and extrusion, including general-purpose, glass-fiber reinforced (30%–50%), and LDS grades. |
| Product Form | LCP Film | Used as base substrates for 5G millimeter-wave antennas and high-frequency FPCs. |
| Product Form | LCP Fiber | Used for high-performance PCB reinforcement and lightweight sports equipment. |
| Product Form | LCP Modified Compounds | Additives like glass fiber, carbon fiber, and PTFE are incorporated to meet thermal conductivity, electrical conductivity, and wear resistance requirements. |
Main Application Fields
Electrical & Electronics (Accounting for >84%)
-
Connectors & Sockets: The preferred material for micro, high-density connectors in smartphones and AI servers.
-
5G Antenna Modules: Low dielectric loss makes it a critical material for millimeter-wave antennas.
-
Flexible Printed Circuits (FPCs): LCP film serves as an ideal base substrate for high-frequency FPCs.
-
Semiconductor Packaging: Utilized in advanced packaging such as MCM and SiP.
-
LED reflectors and capacitor housings.
Automotive Electronics
-
ADAS Sensors: Antenna base membranes for 77 GHz millimeter-wave radars.
-
High-voltage connectors for new energy vehicles.
-
Ignition coil bobbins, automotive camera modules, and LiDAR components.
Medical Field
-
Repeatedly sterilizable medical devices, drug delivery systems, and bio-absorbable implants.
Aerospace & Industry
-
Precision mechanical parts, fiber optic connectors, and lightweight composite materials.
Consumer Goods
-
High-end consumer electronics enclosures and precision drive gears.
Global Market Overview (2026)
Market Size: The global LCP market total grew from approximately $2 billion in 2025 to about $2.18 billion in 2026 (CAGR 9.2%), and is projected to reach $3.12 billion by 2030. Global consumption stands at around 78,000 tons, with expectations to reach 100,000 tons by 2031.
Regional Landscape: The Asia-Pacific region represents the world's largest consumer market, with China's consumption accounting for roughly half of the global total. In 2026, the market size for LCP resin in China reaches about 3.225 billion RMB, with demand increasing by 8.7% year-on-year.
Capacity Landscape: Total global LCP production capacity is approximately 76,000 tons, historically dominated by Celanese, Polyplastics, and Sumitomo Chemical. Production capacity in China is rising rapidly: WOTE Advanced Materials possesses an annual capacity of 25,000 tons (poised to become the world's largest), and Kingfa Sci. & Tech. has reached a total capacity of 21,000 tons. The domestic self-sufficiency rate in China has risen from 15% to 35%.
Market Drivers: 5G/6G deployment, miniaturization of electronic devices, growth in new energy vehicles and ADAS systems, and expanding demand for LCP films.
Major Suppliers: Celanese (VECTRA®), Polyplastics (LAPEROS®), Sumitomo Chemical, WOTE Advanced Materials, Kingfa Sci. & Tech., and Syensqo (Xydar®).
Conclusion
LCP is a class of high-performance specialty engineering plastics. By virtue of its excellent high-temperature resistance, low dielectric loss, superior dimensional stability, and flame retardancy, it remains irreplaceable in fields such as 5G communications, automotive electronics, aerospace, and medical devices. The global market is growing rapidly, and the fast-rising production capacity in China is shifting the global supply structure. Although its unit price is relatively high, its short molding cycles, thin-wall capabilities, and assembly integration benefits deliver strong comprehensive cost-efficiencies. For high-frequency electronics, high-precision structures, and demanding environment applications, LCP is a material choice well worth prioritizing.
